Guitto GGP-01 Acoustic Guitar Pickup with Piezo and Microphone

Two pickup paths in one guitar system

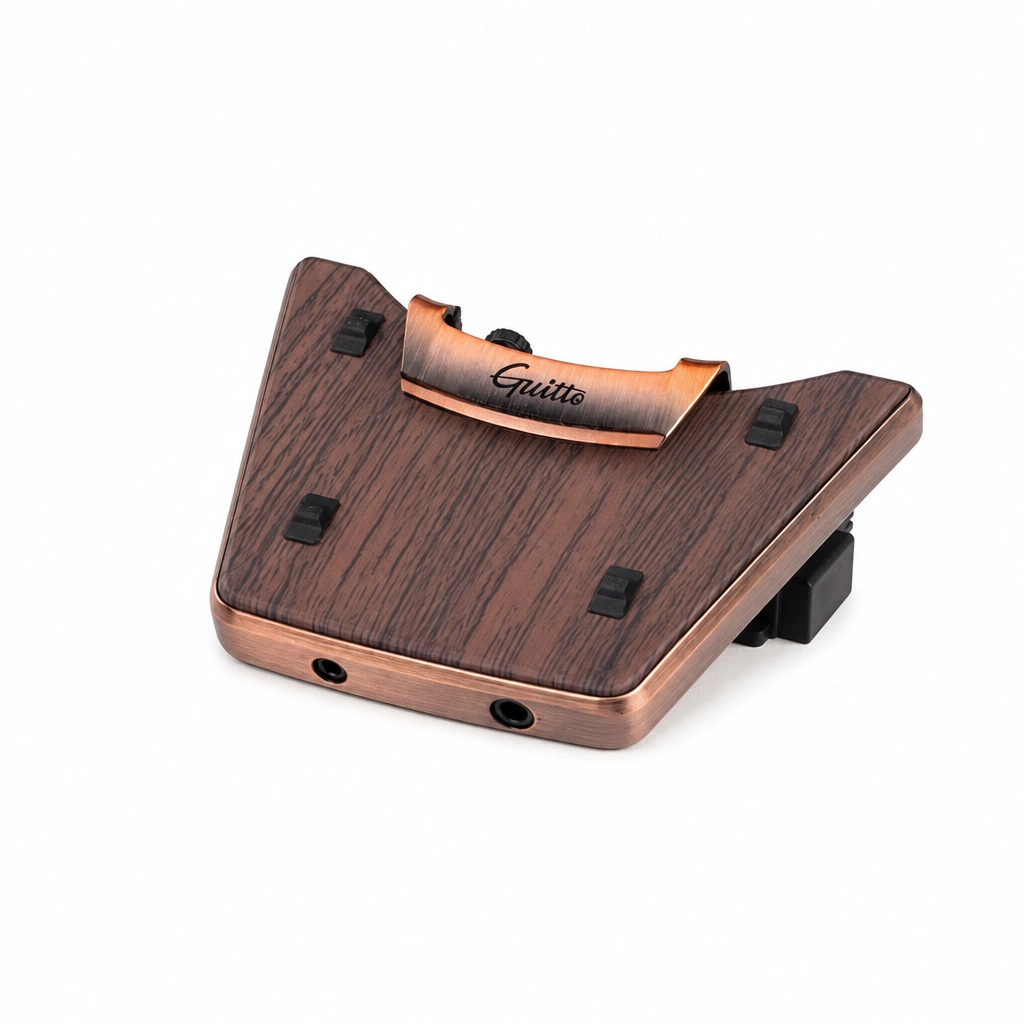

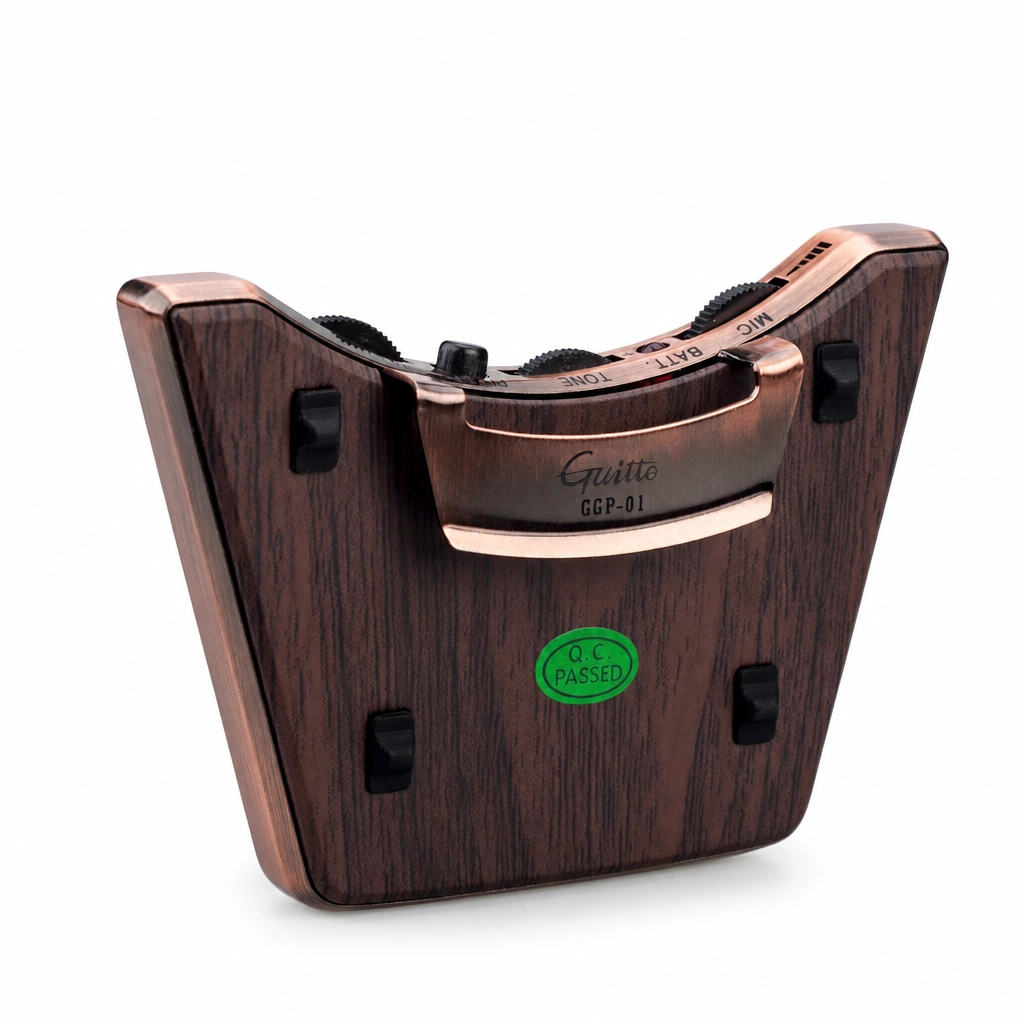

The Guitto GGP-01 is an acoustic guitar pickup system combining a separate piezo pickup rod with a built-in microphone. It is for guitar players who want to connect these pickup paths through an output jack at the guitar’s tail (endpin jack). The control unit mounts at the edge of the soundhole, keeping its labeled controls near the opening. The brown wood-grain appearance is part of the metal-and-plastic housing; it is not a claim that the body is solid wood.

Controls at the soundhole

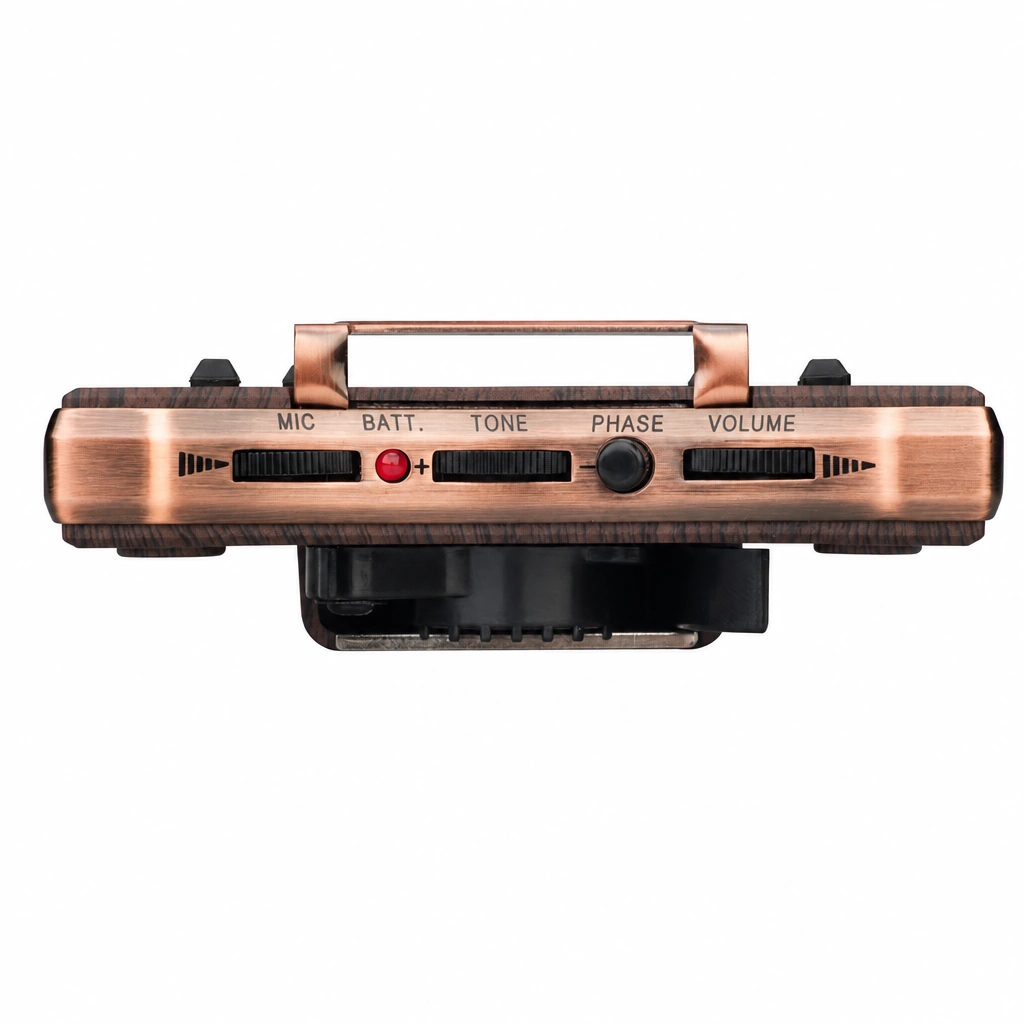

The narrow control edge carries MIC, TONE and VOLUME thumbwheels, a battery indicator and a PHASE push button. MIC adjusts the microphone level, while the tone and volume controls provide the labeled adjustments. The PHASE control changes polarity; it is a control option rather than a guarantee of eliminating feedback. These controls operate on the pickup system. The kit does not include an amplifier, a guitar or a separate instrument lead.

Check the guitar and installation space

The unit measures 8.3 × 6 × 3 cm (about 3.27 × 2.36 × 1.18 in) and weighs 58 g (about 2.05 oz). It is listed for 36–42 inch acoustic and classical guitars, but overall guitar length does not establish soundhole fit. Check the space at the soundhole rim and inside the guitar against the unit and connection parts before choosing it. The control unit clips at the soundhole edge; the separate pickup rod and endpin output jack also need to be installed and connected. It is a complete pickup system, not just a clip that makes every guitar ready to plug in.

What the complete kit contains

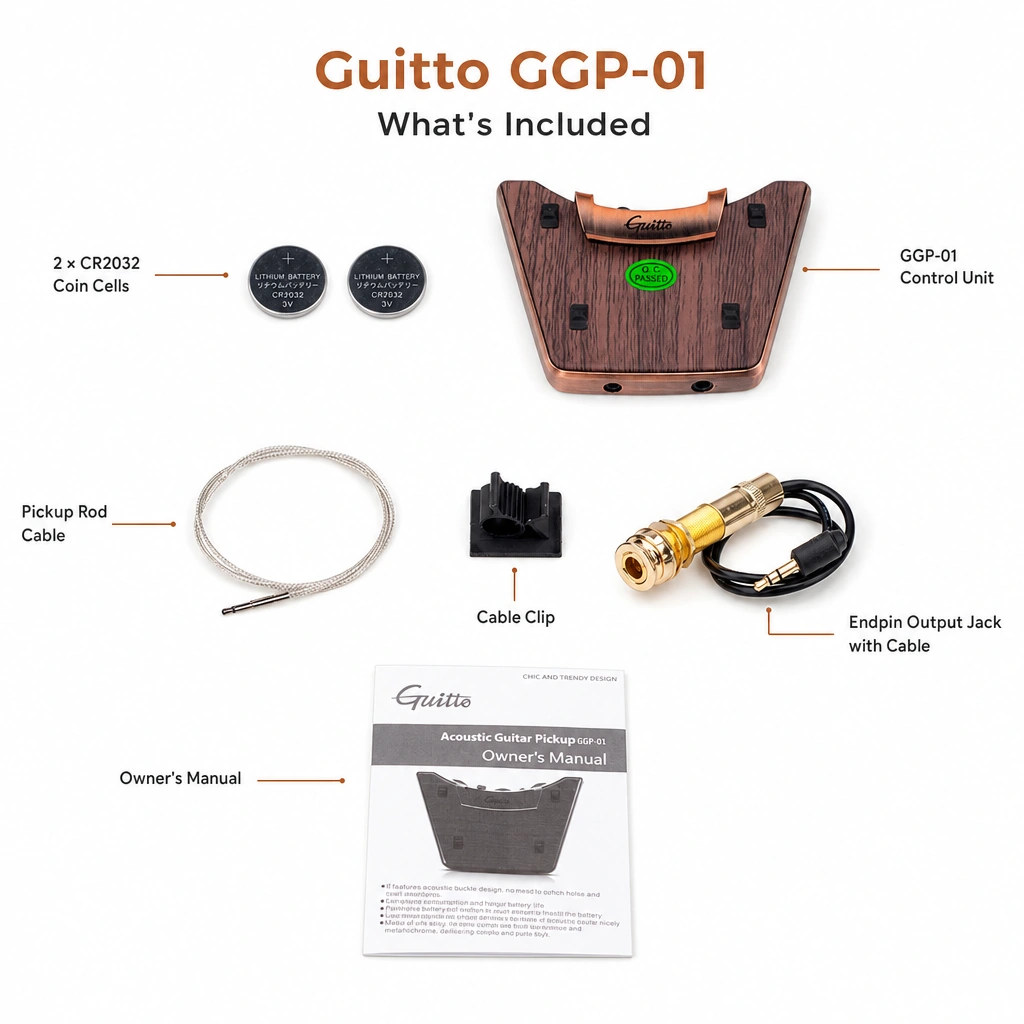

Each unit contains one Guitto GGP-01 pickup/control unit, one piezo pickup rod, one endpin jack with its connection cable, one cable clip, one instruction manual and two CR2032 batteries. The batteries are included and power the control unit. The parts shown together are one complete kit; a guitar in an installation photo is only there to show the mounting position. One complete kit is available from quantity 1.

Specifications

Questions and answers

What are the two pickup paths?

The kit combines a separate piezo pickup rod and a built-in microphone. MIC adjusts the microphone level.

Will it fit every 36–42 inch guitar?

The stated guitar length range does not guarantee soundhole clearance. Check the soundhole rim and space inside your guitar against the unit and its connection parts.

Is the whole system installed by clipping on one part?

No. The control unit clips at the soundhole edge, but the pickup rod and endpin output jack also need installation and connection.

Are batteries included?

Yes. Each complete kit includes two CR2032 batteries, along with the pickup, rod, endpin jack/cable, cable clip and manual.

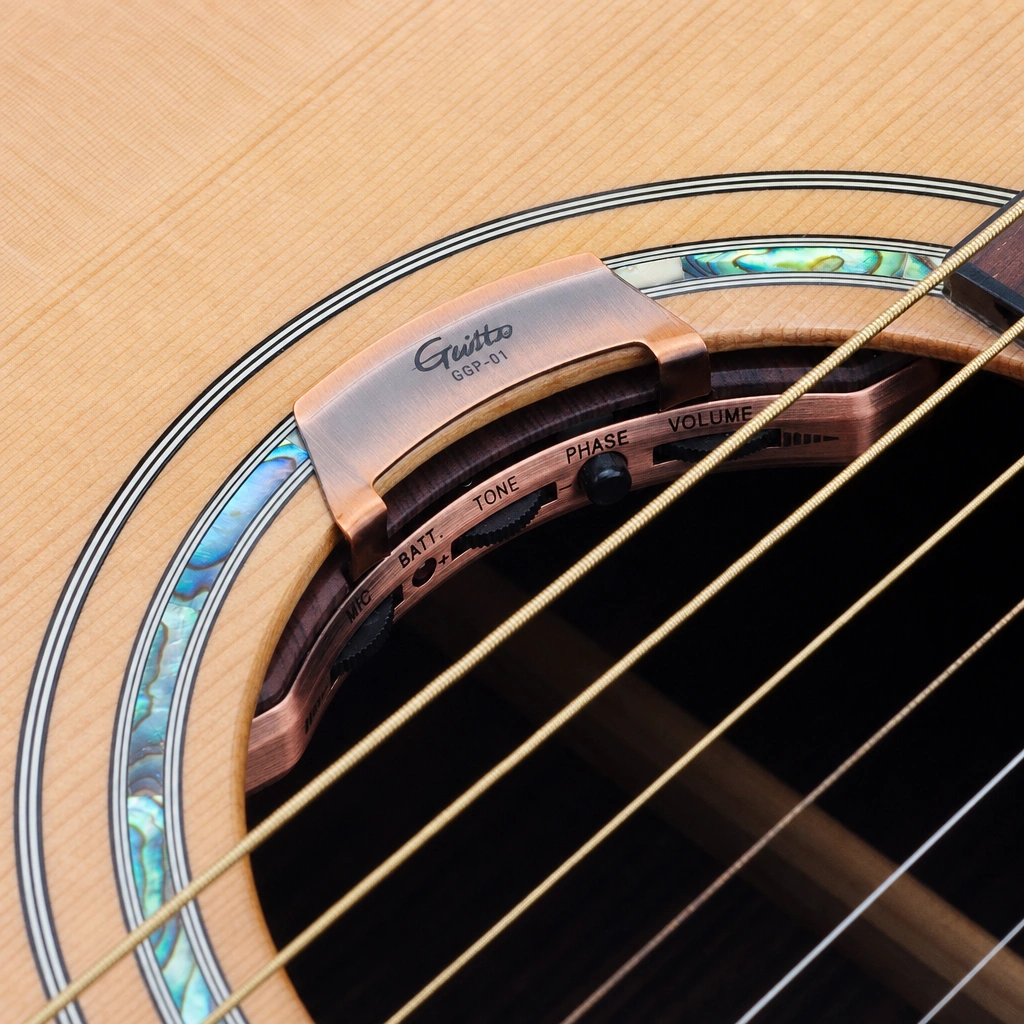

Does the installation photo mean a guitar is included?

No. Each unit is one pickup kit. The guitar shown illustrates its installation position.
