2HP Oil-Free Air Compressor Pump Motor

A pump motor assembly for a compressor system

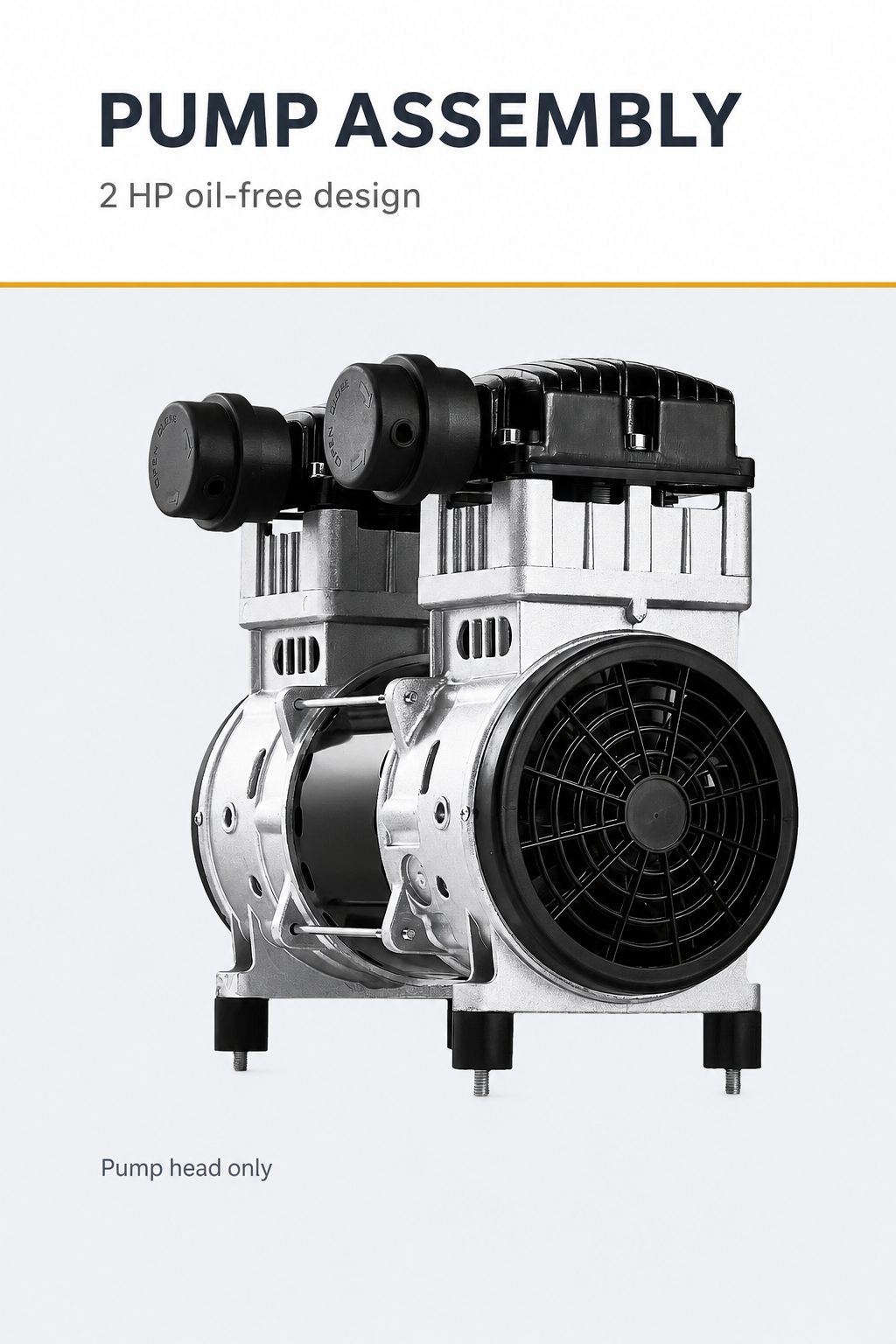

This 2HP oil-free air compressor pump motor is a component for a compressed-air system. It brings the pump and motor together in the photographed assembly. Choose it when you are looking for this type of compressor component, rather than a complete compressor with an air tank. Compare the assembly with the equipment you plan to use it with before ordering.

Read airflow together with pressure

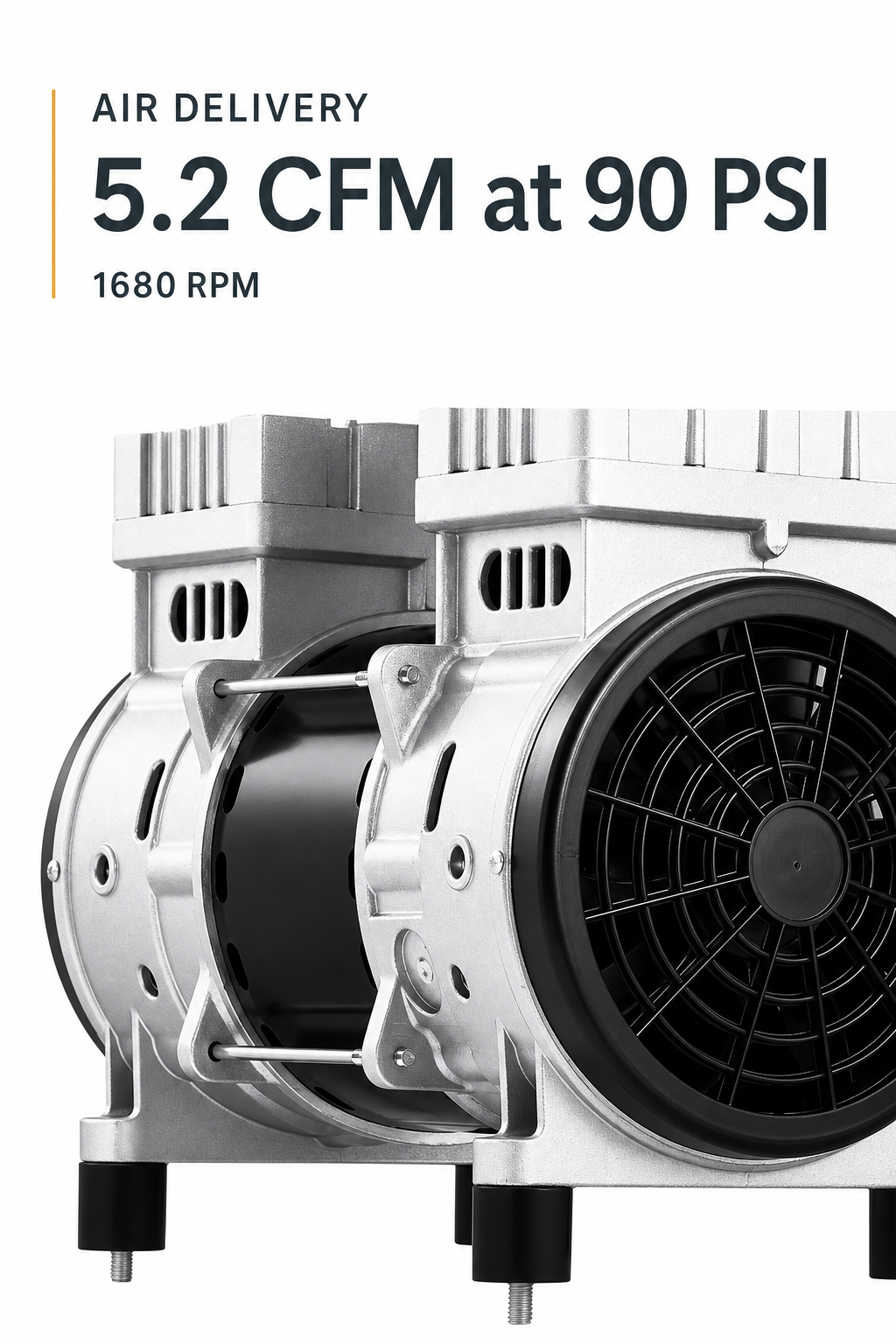

The listed air delivery is 5.2 CFM at 90 PSI, with a listed speed of 1680 RPM. Keep the pressure alongside the flow figure when comparing equipment. The maximum pressure is listed separately as 145 PSI; it does not mean that the pump delivers 5.2 CFM at 145 PSI. For a pneumatic tool, compare both its required working pressure and air consumption with the compressor system you intend to assemble.

Compare the visible structure

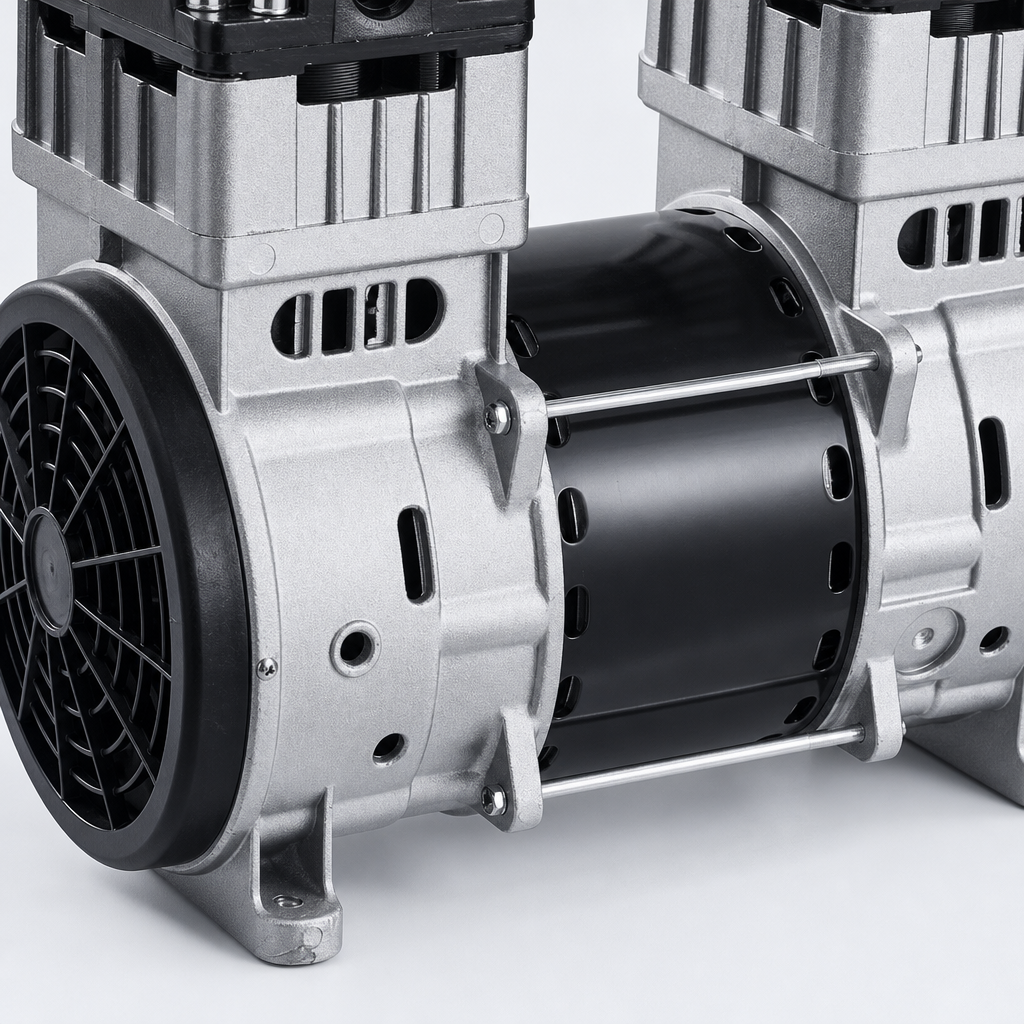

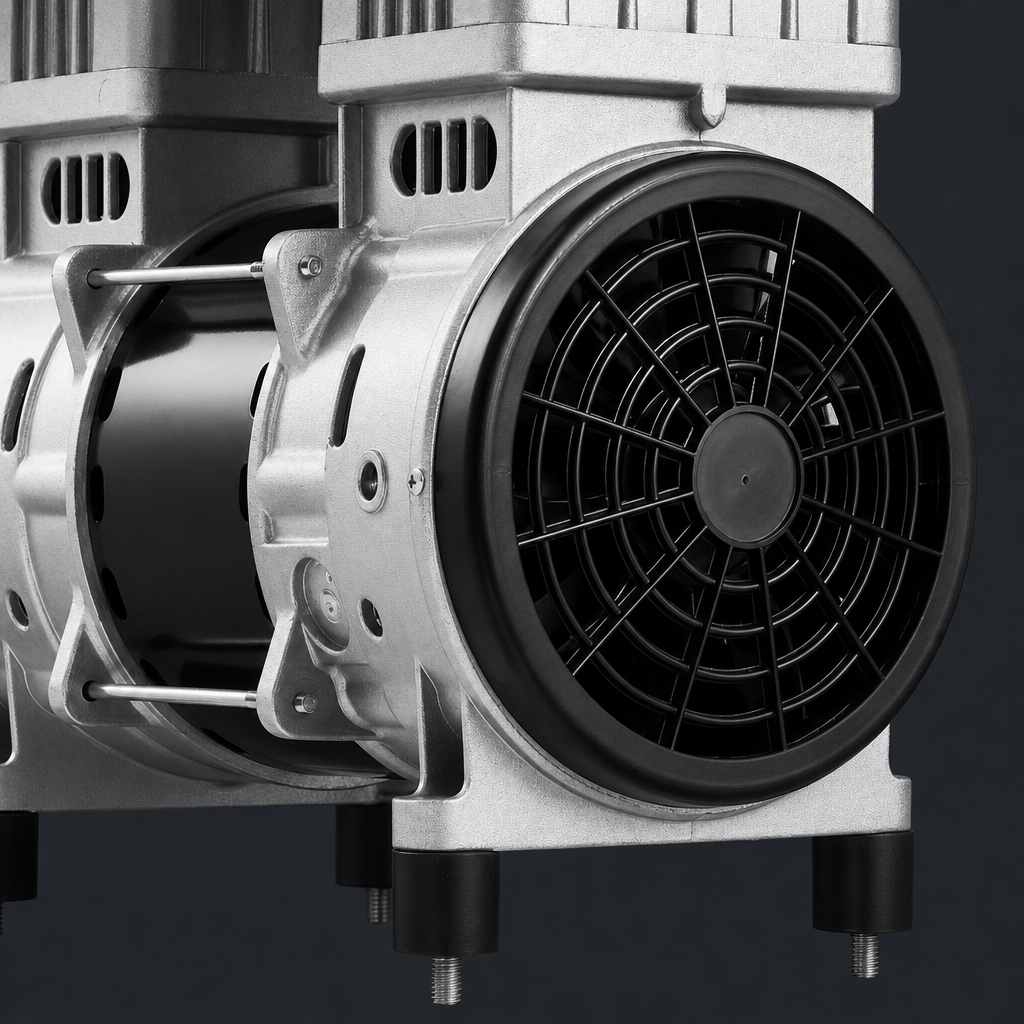

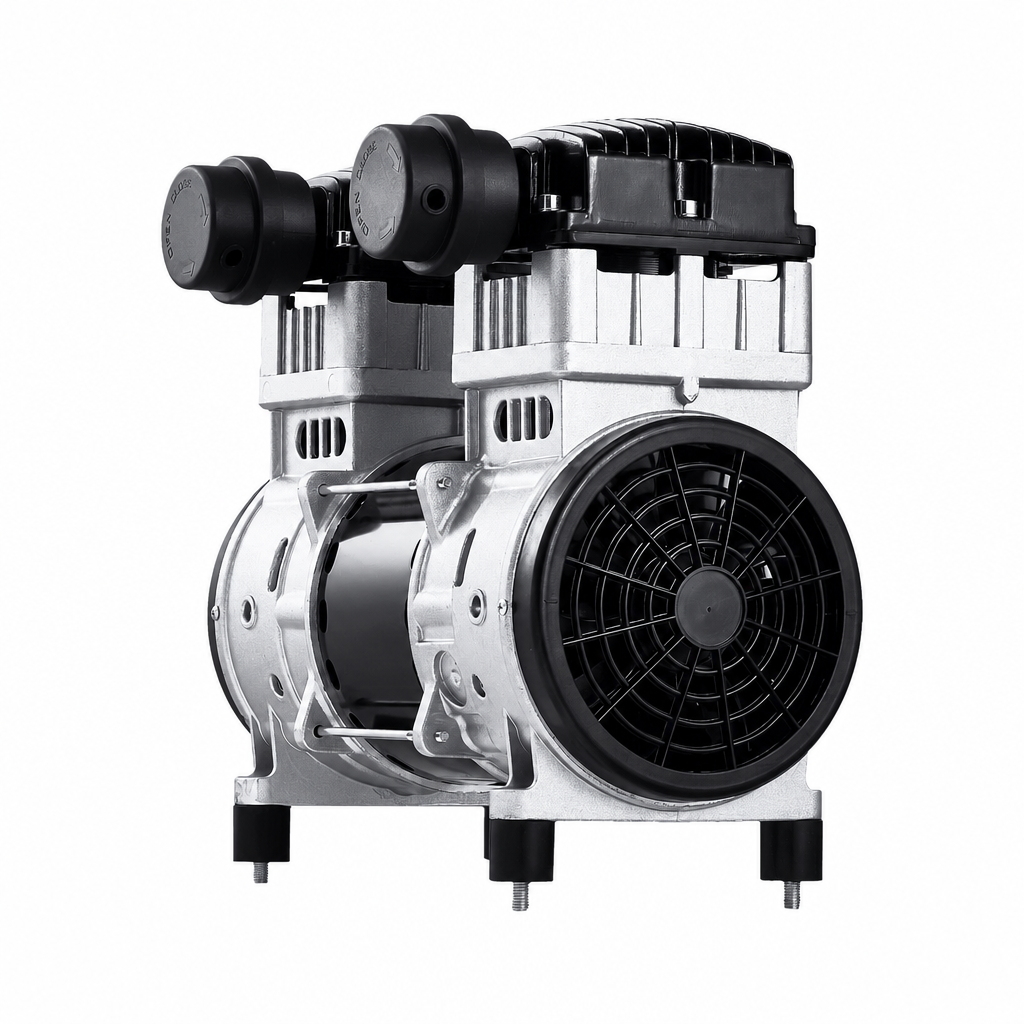

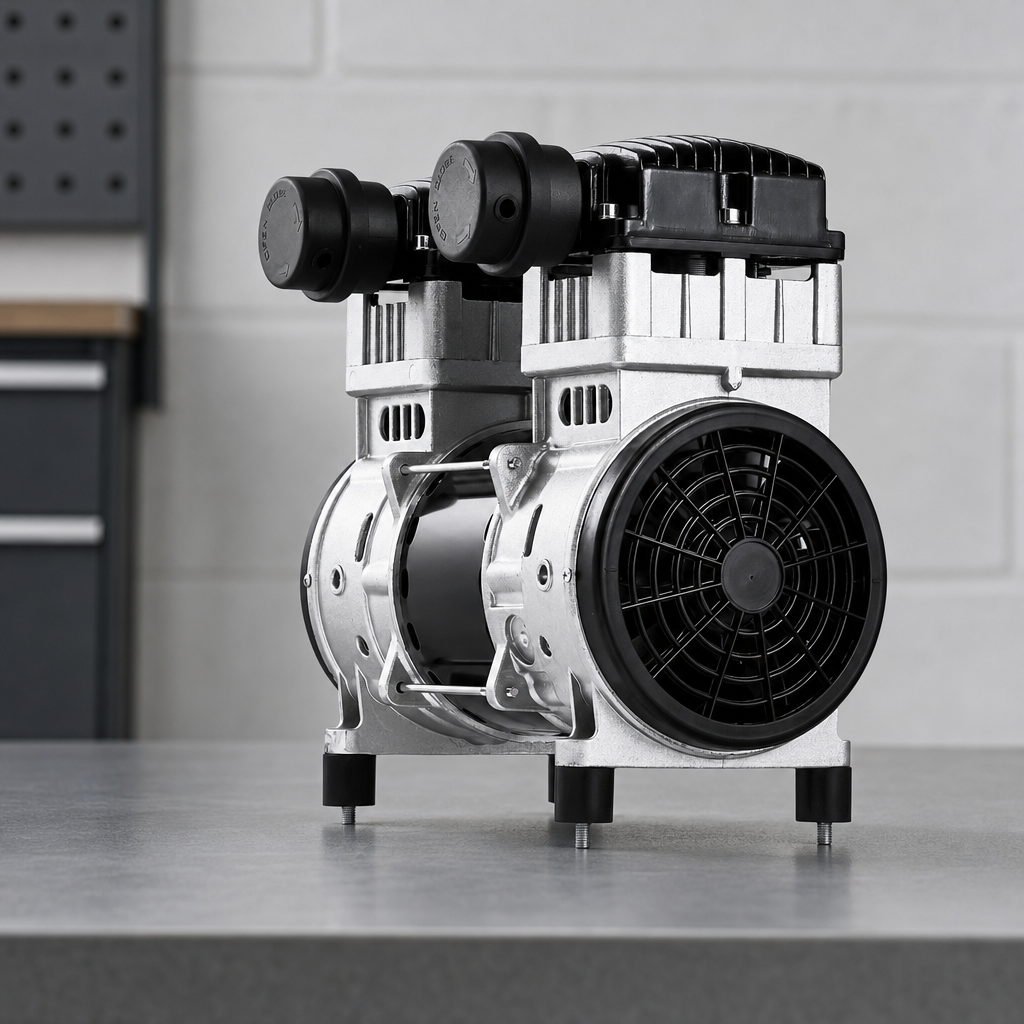

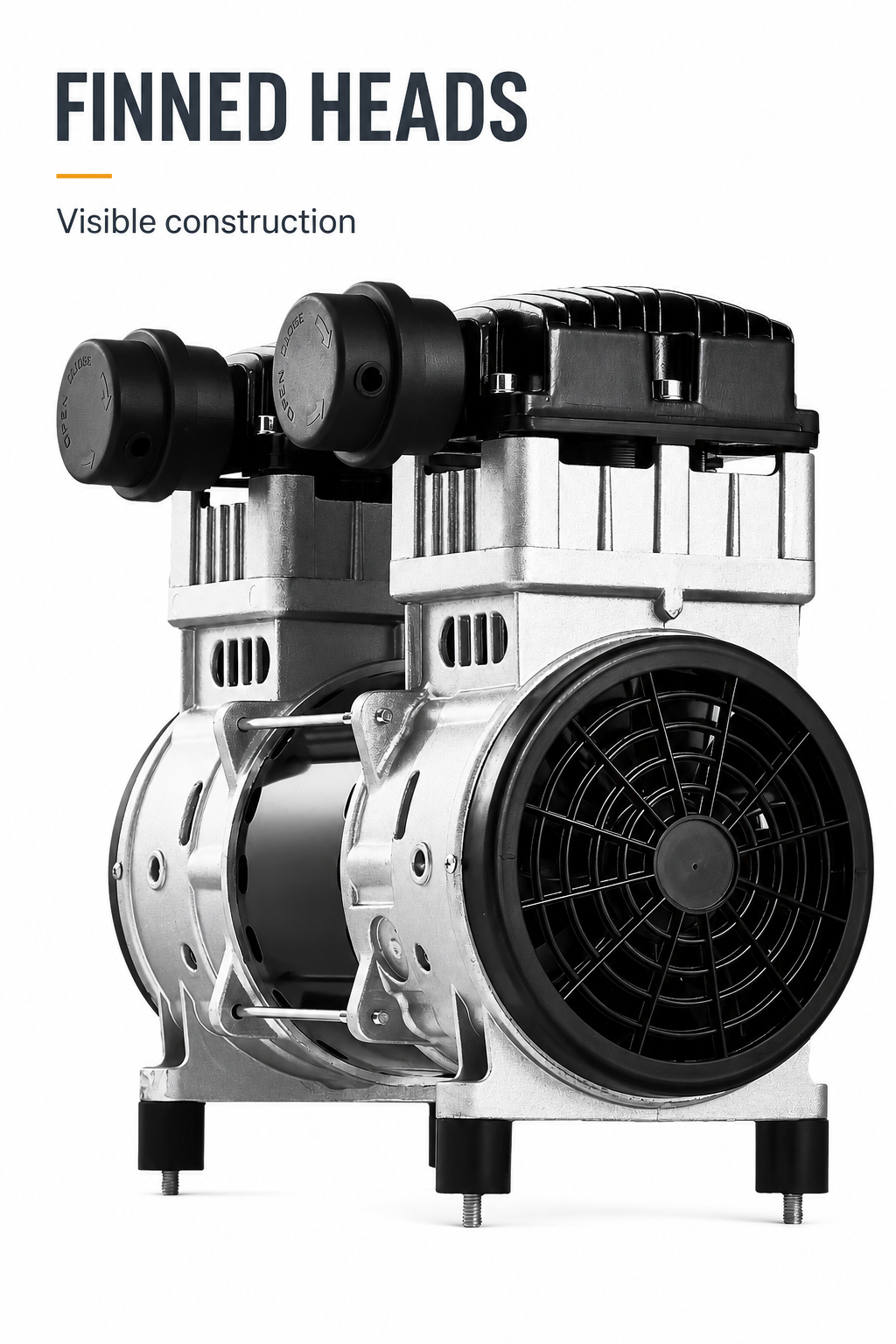

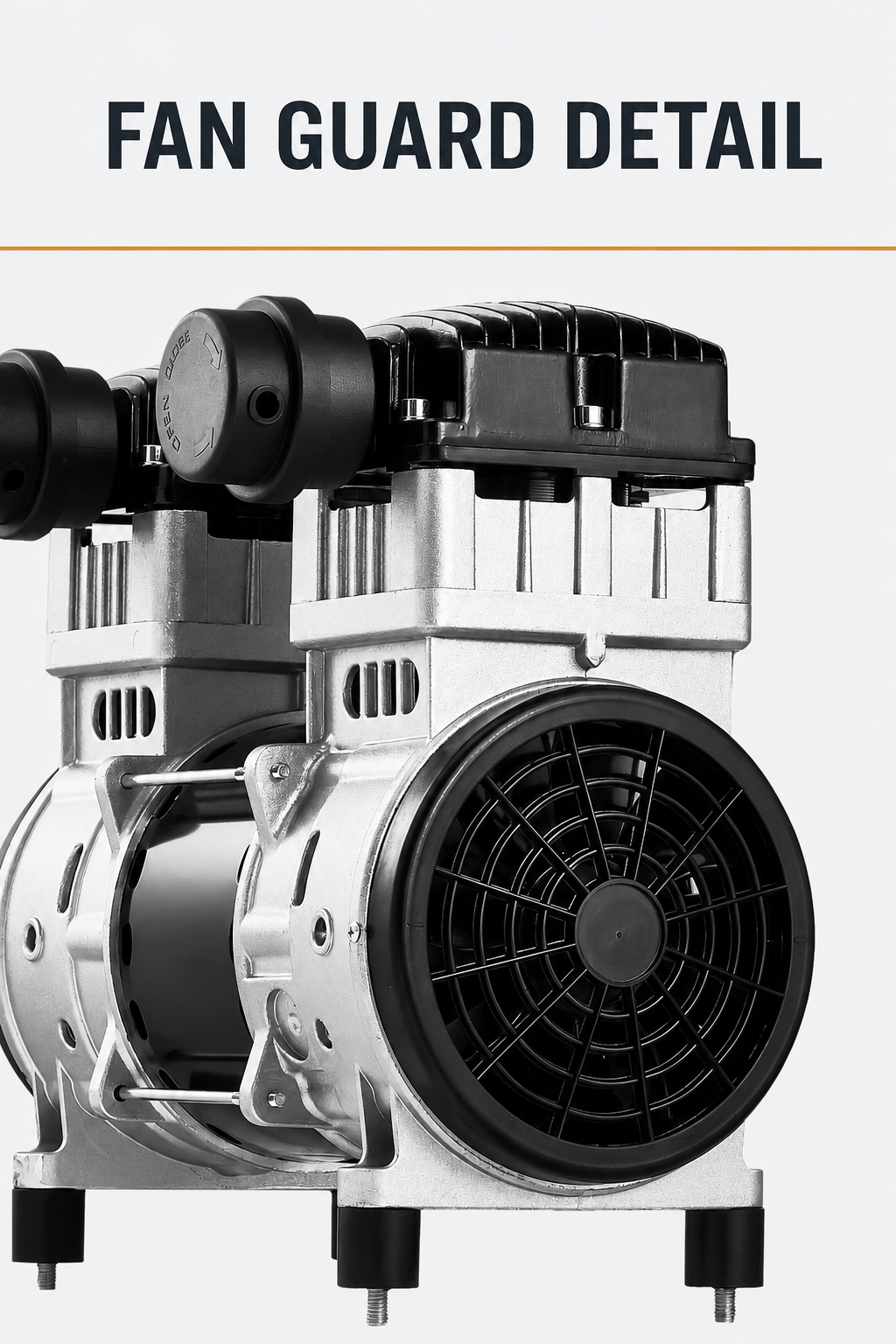

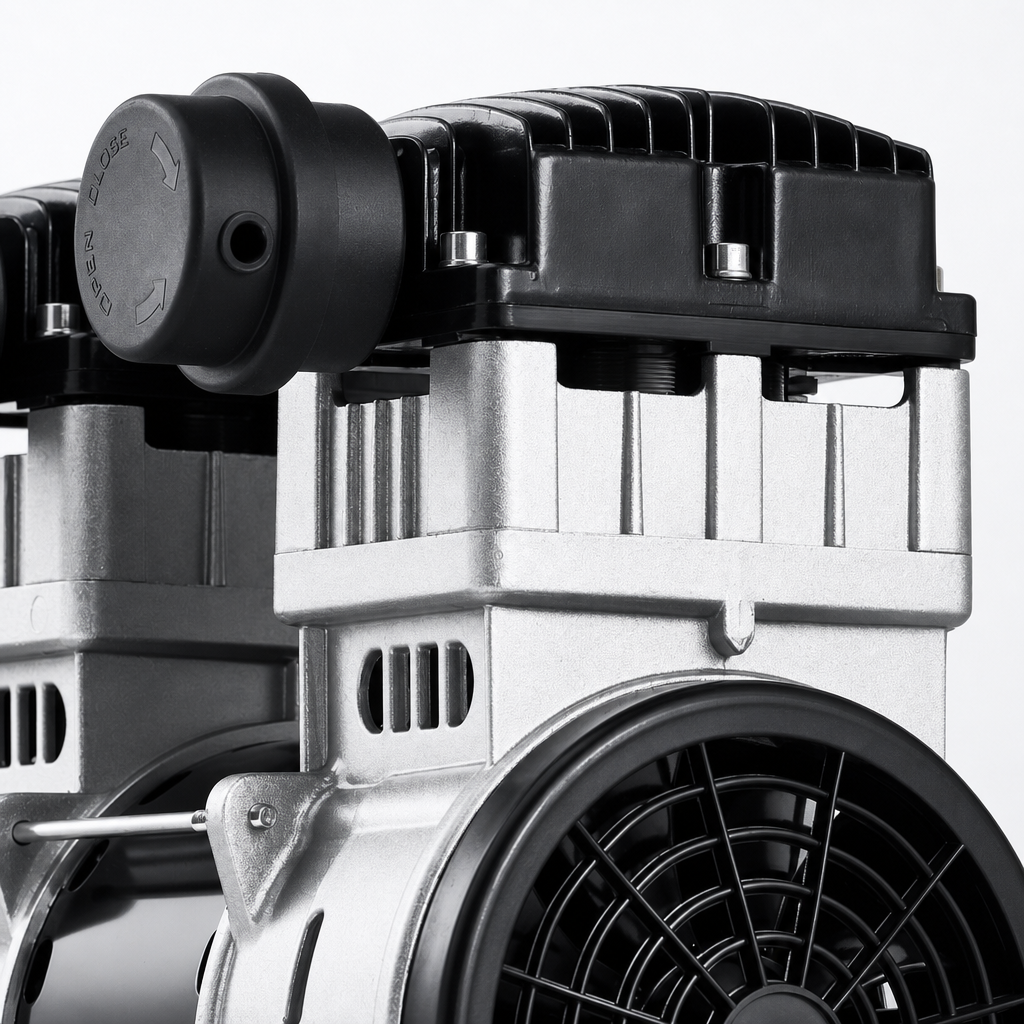

The photographs show the fan guard, black finned heads, central motor housing and metal connecting parts. Use the full view to understand the assembly and the close-ups to compare its visible construction. A similar appearance alone does not establish a direct replacement for another model. Check the actual mounting arrangement and connection requirements of your equipment.

One power option, one pump assembly

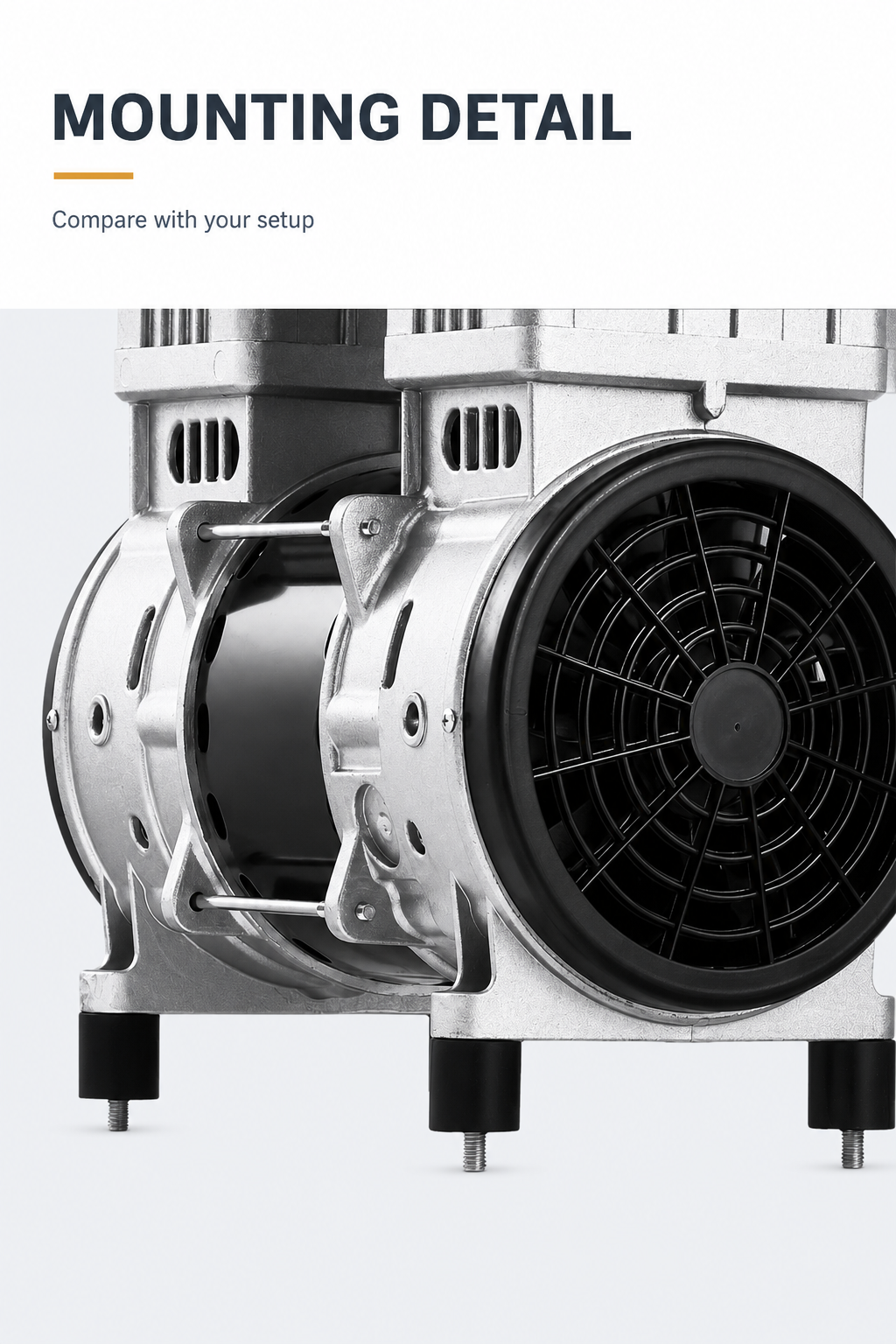

The available option is the oil-free pump head rated 2 hp. Each purchase unit contains one pump motor assembly, rather than a complete compressor with an air tank. Use the full view and mounting close-ups to compare the assembly with your equipment. Contact us with your equipment details if you need help checking the fit.

Separate package measurements from fit measurements

The listed package measures 38.02 × 35 × 26.52 cm, approximately 14.97 × 13.78 × 10.44 inches. Its gross weight is 17.35 kg, approximately 38.25 lb. These figures describe the packed parcel, rather than the bare assembly's dimensions, mounting-hole spacing or net weight. They are useful for understanding the parcel, but should not be used as an installation drawing.

Specifications

Questions before choosing

Is this a complete air compressor with a tank?

No. This item is the oil-free pump motor assembly. It is a component for a compressor system, rather than a complete compressor with an air tank.

Does 5.2 CFM apply at the maximum pressure?

The listed 5.2 CFM figure applies at 90 PSI. Maximum pressure is listed separately as 145 PSI. The two figures describe different operating points and should not be combined into a new rating.

How do I choose the right option?

There is one listed option: an oil-free pump head rated 2 hp. Compare the airflow, pressure, mounting arrangement and connections with your intended system. Appearance and power alone do not establish compatibility.

Can I use the package size to check mounting fit?

No. The 38.02 × 35 × 26.52 cm dimensions and 17.35 kg gross weight describe the packed parcel. They are not assembly dimensions, mounting-hole spacing or net weight.
